VC4V-K Cable Description
VC4V-K cable features a Class 5 copper conductor, PVC insulation and outer sheath, and a copper braided shield. It is suitable for stationary industrial installations, machinery, and variable speed drives, and is particularly suitable for applications where external electromagnetic field-induced voltages may affect signal transmission. Common applications include control circuits, electronic equipment, and computer systems.

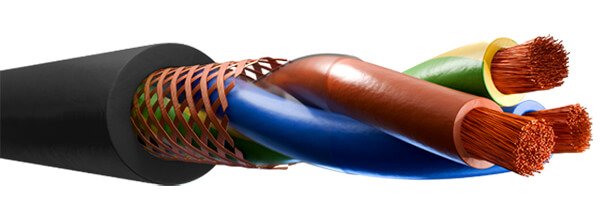

VC4V-K Cable Construction
- Conductor
- Copper, class 5 (flexible)
- Insulation
- PVC (flexible)
- Screen
- Overlapping aluminium-polyester tape screen with
100% coverage + tinned copper drain wire - Outer sheath
- PVC (flexible)
VC4V-K Cable Characteristics
- Voltage Rating
- 300/500V (up to 1,5mm²)
- 0,6/1kV (from 2,5mm² onwards)
- Thermal performance
- Maximum service temperature: 70ºC
- Maximum short-circuittemperature: 160ºC (max. 5 s)
- Minimum service temperature: -40ºC
- Minimum bending radius
- x5 cable diameter
VC4V-K Cable Specifications
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|
| 300/500V | |||
| 17(32/32) | 2x1 | 7.7 | 76 |
| 16(30/30) | 2x1.5 | 8.6 | 95 |
| 14(50/30) | 2x2.5 | 9.8 | 121 |
| 17(32/32) | 3G1 | 8.1 | 88 |
| 16(30/30) | 3G1.5 | 9.3 | 124 |
| 14(50/30) | 3G2.5 | 10.9 | 174 |
| 17(32/32) | 4G1 | 8.8 | 114 |
| 16(30/30) | 4G1.5 | 9.8 | 138 |
| 14(50/30) | 4G2.5 | 11.8 | 213 |
| 17(32/32) | 5G1 | 9.6 | 140 |
| 16(30/30) | 5G1.5 | 11.1 | 185 |
| 17(32/32) | 6G1 | 10.8 | 172 |
| 16(30/30) | 6G1.5 | 12.2 | 224 |
| 17(32/32) | 8G1 | 12 | 218 |
| 16(30/30) | 8G1.5 | 14 | 288 |
| 17(32/32) | 10G1 | 13.1 | 239 |
| 17(32/32) | 12G1 | 13.4 | 271 |
| 16(30/30) | 12G1.5 | 15.7 | 358 |
| 17(32/32) | 16G1 | 14.9 | 350 |
| 17(32/32) | 19G1 | 15.9 | 402 |
| 16(30/30) | 24G1.5 | 22 | 723 |
| 600/1000V | |||
| 14(50/30) | 2x2.5 | 9.6 | 121 |
| 14(50/30) | 3G2.5 | 10.8 | 162 |
| 14(50/30) | 4G2.5 | 11.7 | 204 |
| 14(50/30) | 5G2.5 | 12.8 | 243 |
| 14(50/30) | 7G2.5 | 13.8 | 305 |
| 12(56/28) | 4G4.0 | 12.6 | 272 |
| 10(84/28) | 4G6.0 | 14.4 | 358 |
| 8(80/26) | 4G10 | 17.5 | 570 |
| 6(128/26) | 4G16 | 20.1 | 814 |
| 4(200/26) | 4G25 | 24.5 | 1224 |
| 2(280/26) | 4G35 | 28.2 | 1654 |
| 1(400/26) | 4G50 | 32.3 | 2249 |
| 2/0(356/24) | 4G70 | 37.5 | 3102 |
| 3/0(485/24) | 4G95 | 42.5 | 3931 |
