BFSI

BFSI Cable Description

BFSI cables are suitable for indoor and outdoor fixed installations and can also be directly buried underground without additional protection. They are primarily used in public buildings, hospitals, subways, tunnels, and industrial parks to ensure the continuous operation of security and alarm systems. The EMC-shielded variant of this cable (often referred to as BFSI-EMC) includes a special copper shielding layer that provides excellent electromagnetic interference protection.

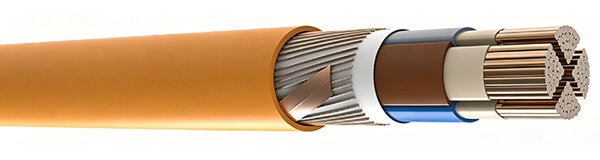

BFSI Cable Construction

Conductor
Class 2 stranded copper
Primary insulation
mica tape
Insulation
XLPE compound
Bedding
Extruded halogen-free compound or plastic halogen-free tape
Concentric conductor
Copper wires and copper tape helically (spirally) applied
Sheath
HFFR compound, UV resistant

BFSI Cable Characteristics

Rated voltage
0,6/1 kV
Min. laying temperature
-20°C
Max. working temperature
90°C
Max. short-circuit temperature
250°C

BFSI Cable Specifications

NOMINAL CROSS-SECTION (mm²)	CONDUCTOR SHAPE	MAX. RESISTANCE AT 20°C (Ω/km)	CURRENT CAPACITY IN AIR (A)	OUTER DIAM. (APPROX.) (mm)	CABLE WEIGHT (APPROX.) (kg/km)
2x1,5/1,5	RE	12,1/12,1	25	14,2	196
2x2,5/2,5	RE	7,41/7,41	33	15	225
2x4/4	RE	4,61/4,61	43	16,3	285
2x6/6	RE	3,08/3,08	54	17,6	353
2x10/10	RE	1,83/1,83	75	19,3	486
2x16/16	RE	1,15/1,15	100	21,1	670
2x25/16	RM	0,727/1,15	136	25,9	943
2x35/16	RM	0,524/1,15	165	28	1155
3x1,5/1,5	RE	12,1/12,1	25	14,8	222
3x2,5/2,5	RE	7,41/7,41	33	15,6	260
3x4/4	RE	4,61/4,61	43	17	335
3x4/4	RM	4,61/4,61	43	17,7	347
3x6/6	RE	3,08/3,08	54	18,4	422
3x6/6	RM	3,08/3,08	54	18,8	431
3x10/10	RE	1,83/1,83	75	20,2	591
3x10/10	RM	1,83/1,83	75	20,8	604
3x16/16	RE	1,15/1,15	100	22,1	828
3x16/16	RM	1,15/1,15	100	23	851
3x25/16	RM	0,727/1,15	136	27,3	1196
3x35/16	RM	0,524/1,15	165	29,6	1497
3x50/25	SM	0,387/0,727	201	29,7	1896
3x70/35	SM	0,268/0,524	255	33,6	2645
3x95/50	SM	0,193/0,387	314	36,7	3547
3x120/70	SM	0,153/0,268	364	40,5	4488
3x150/70	SM	0,124/0,268	416	44,7	5373
3x185/95	SM	0,0991/0,193	480	48,6	6705
3x240/120	SM	0,0754/0,153	565	54,6	8690
4x1,5/1,5	RE	12,1/12,1	25	15,8	247
4x2,5/2,5	RE	7,41/7,41	33	16,7	294
4x4/4	RE	4,61/4,61	43	18,2	382
4x6/6	RE	3,08/3,08	54	19,7	486
4x6/6	RM	3,08/3,08	54	20,7	495
4x10/10	RE	1,83/1,83	75	21,7	690
4x10/10	RM	1,83/1,83	75	22,4	705
4x16/16	RE	1,15/1,15	100	23,9	977
4x16/16	RM	1,15/1,15	100	24,9	1002
4x25/16	RM	0,727/1,15	136	29,7	1429
4x35/16	RM	0,524/1,15	165	32,2	1821
4x35/16	SM	0,524/1,15	165	29,8	1810
4x50/25	SM	0,387/0,727	201	33,2	2419
4x70/35	SM	0,268/0,524	255	37,6	3375
4x95/50	SM	0,193/0,387	314	41,3	4533
4x120/70	SM	0,153/0,268	364	46,1	5742
4x150/70	SM	0,124/0,268	416	50,1	6874
4x185/95	SM	0,0991/0,193	480	54,8	8594
4x240/120	SM	0,0754/0,153	565	61,4	11135
5x1,5/1,5	RE	12,1/12,1	25	16,8	284
5x2,5/2,5	RE	7,41/7,41	33	17,9	344
5x4/4	RE	4,61/4,61	43	19,5	449
5x6/6	RE	3,08/3,08	54	21,1	574
5x10/10	RE	1,83/1,83	75	23,4	820
5x16/16	RE	1,15/1,15	100	25,8	1167
3x185/95	SM	0,0991/0,193	480	48,6	6705
3x240/120	SM	0,0754/0,153	565	54,6	8690
