FG16H2R16 Cable

FG16H2R16 Cable Description

The FG16H2R16 cable features a flexible copper conductor, HEPR compound insulation, a copper braid shield, and an R16-grade polyvinyl chloride (PVC) outer sheath. It is suitable for installation in conduits, on cable trays, on walls or metal structures, and for direct or indirect burial underground. It is commonly used for fixed wiring in industrial equipment, buildings, and along signal or power transmission paths.

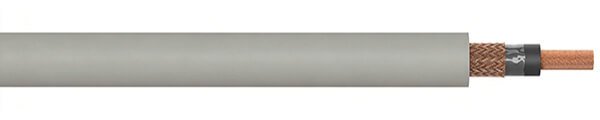

FG16H2R16 Cable Construction

Conductor
Flexible plain copper, Class 5
Insulation
HEPR rubber (G16 quality)
Screen
Plain copper braid
Outer Sheath
PVC compound (R16 quality)

FG16H2R16 Cable Characteristics

Voltage Rating
0.6/1 kV
Operating Temperatures
Maximum working temperature: 90°C
Maximum short-circuit temperature: 250°C

FG16H2R16 Cable Specification

Conductor cross‑sections (mm²)	Approx. conductor (mm)	Average insulation thickness (mm)	Average sheath thickness (mm)	Max. external (mm)	Approx. cable weight (kg/km)	Max. electrical resistance at 20°C (ohm/ km)	Current rating (A)
Conductor cross‑sections (mm²)	Approx. conductor (mm)	Average insulation thickness (mm)	Average sheath thickness (mm)	Max. external (mm)	Approx. cable weight (kg/km)	Max. electrical resistance at 20°C (ohm/ km)	in air 30°C	in pipe 20°C
1 x 35	7,3	0,9	1,8	15,3	512	0,554	144	121
1 x 50	8,9	1,0	1,8	17,5	690	0,386	175	150
1 x 70	10,5	1,1	1,8	19,0	890	0,272	222	184
1 x 95	11,9	1,1	1,8	20,7	1116	0,206	269	217
1 x 120	13,7	1,2	1,8	22,8	1400	0,161	312	259
1 x 150	15,0	1,4	1,8	24,9	1730	0,129	355	287
1 x 185	16,5	1,6	1,9	27,5	2095	0,106	417	323
1 x 240	19,5	1,7	2,0	30,9	2670	0,0801	490	379
