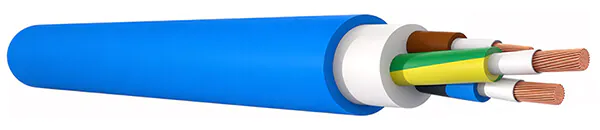

FTG10M1 / FTG10OM1

FTG10M1 Cable Description

The FTG10M1 cable features flexible copper conductors wrapped in fire-resistant glass or mica tape, insulated with a G10-grade rubber compound, and encased in a special M1-grade thermoplastic outer sheath. It is characterized by low smoke emission, a halogen-free composition, and flame-retardant properties.

This cable is suitable for fixed installation—both indoors and outdoors—in damp environments, conduits, cable trays, or on metal structures, as well as for direct or indirect underground installation. It is commonly used in emergency lighting, fire alarm systems, smoke/gas detection systems, fire-extinguishing systems, and smoke extraction or ventilation systems.

FTG10M1 Cable Construction

Conductor
Class 5 flexible plain copper wire
Insulation
Cross-linked G10 quality rubber compound
Fire Barrier
Helical glass/mica tape
Outer Sheath
Thermoplastic compound of M1 quality

FTG10M1 Cable Characteristics

Voltage Rating
0.6/1 kV
Operating Temperature
flexing: -5°C to +90°C
static: -25°C to +90°C

FTG10M1 Cable Specification

No. of Cores x Nominal Cross Sectional Area (# x mm²)	Nominal Thickness of Insulation (mm)	Nominal Thickness of Sheath (mm)	Nominal Overall Diameter (mm)	Nominal Weight (kg/km)
1 x 1.5	1	1.4	7.6	80
1 x 2.5	1	1.4	8	90
1 x 4.0	1	1.4	8.6	110
1 x 6.0	1	1.4	9.1	130
1 x 10.0	1	1.4	10.5	180
1 x 16.0	1	1.4	11.7	250
1 x 25.0	1.2	1.4	13	350
1 x 35.0	1.2	1.6	14.2	460
1 x 50.0	1.4	1.6	16.2	620
1 x 70.0	1.4	1.8	17.9	820
1 x 95.0	1.6	2	19.6	1100
1 x 120.0	1.6	2	21.4	1350
1 x 150.0	1.8	2	23.3	1630
1 x 185.0	2	2	26	1980
1 x 240.0	2.4	2	29.4	2550
2 x 1.5	1	1.8	13.4	230
2 x 2.5	1	1.8	14.4	270
2 x 4.0	1	1.8	15.5	330
2 x 6.0	1	1.8	16.6	400
2 x 10.0	1	1.8	19	560
2 x 16.0	1	1.8	21.2	750
2 x 25.0	1.2	2	23.9	1020
2 x 35.0	1.2	2	26.2	1300
2 x 50.0	1.4	2	30.1	1750
3 x 1.5	1	1.8	14.2	260
3 x 2.5	1	1.8	15.1	320
3 x 4.0	1	1.8	16.4	390
3 x 6.0	1	1.8	17.5	470
3 x 10.0	1	1.8	20	670
3 x 16.0	1	1.8	22.6	910
3 x 25.0	1.2	2	25.4	1250
3 x 35.0	1.2	2	27.8	1640
3 x 50.0	1.4	2	32.2	2210
4 x 1.5	1	1.8	15.2	300
4 x 2.5	1	1.8	16.4	370
4 x 4.0	1	1.8	17.9	460
4 x 6.0	1	1.8	18.7	560
4 x 10.0	1	2	21.9	810
4 x 16.0	1	2	24.7	1100
4 x 25.0	1.2	2	27.9	1530
3 x 35.0 + 1 x 25	1.2	2	30	1900
3 x 50.0 + 1 x 25	1.4	2	33.7	2440
5 x 1.5	1		16.5	350
5 x 2.5	1	1.8	17.9	430
5 x 4.0	1	1.8	19.3	540
5 x 6.0	1	1.8	20	670
5 x 10.0	1	2	24	990
5 x 16.0	1	2	27.1	1350
5 x 25.0	1.2	2	30.7	1870
5 x 35.0	1.2	2.2	34	2480
5 x 50.0	1.4	2.2	39.7	3410
7 x 1.5	1	1.8	17.9	420
10 x 1.5	1	2	21.8	560
12 x 1.5	1	2	22.6	630
16 x 1.5	1	2	25.4	790
19 x 1.5	1	2	26.2	890
24 x 2.5	1	2	30.2	1170
7 x 2.5	1	1.8	19	520
10 x 2.5	1	2	23.7	700
12 x 2.5	1	2	24.4	800
16 x 2.5	1	2	27.1	1000
19 x 2.5	1	2	28.5	1130
24 x 2.5	1	2.2	33.1	1510
