JE-HH Cable Description
Featuring Class 1 copper conductors, ceramic-forming polymer compound insulation, and a low-smoke, halogen-free outer sheath, JE-HH cables are commonly used in public buildings with stringent fire safety requirements, fire alarm systems, and automated safety control systems. If the circuit specifications require an overall foil screen, please refer to the separate JE-H(St)H Bd type fire-resistant cable.

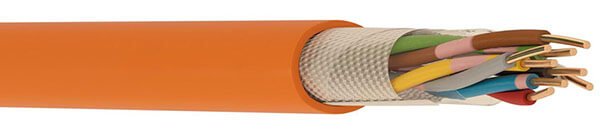

JE-HH Cable Construction
- Conductor
- Solid bare or tinned copper (Class 1)
- Insulation
- Cross-linked polymer compound in ceramic form
- Outer Sheath
- Low Smoke Zero Halogen (LSZH / FRNC)
JE-HH Cable Characteristics
- Operating Voltage
- Max. 225 V
- Bending Radius
- 10xD mm
- Temperature Range
- -40°C ~ +70°C
JE-HH Cable Fire Rating
- Insulation Integrity (FE180): Electrical insulation remains functional for at least 180 minutes during direct flame exposure
- Circuit Integrity (E30 – E90): Maintains system operational continuity for 30 to 90 minutes under fire conditions
- Mechanical Shock / Survival (PH120): Retains circuit operation under combined fire and mechanical impact for up to 120 minutes
JE-HH Cable Specification
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 1 | 0.6 | 4.3 | 5.4 | 22 |
| 2 | 0.6 | 4.9 | 10.7 | 34 |
| 3 | 0.6 | 6.4 | 16.1 | 50 |
| 4 | 0.6 | 7.6 | 21.5 | 63 |
| 5 | 0.6 | 8 | 26.8 | 75 |
| 6 | 0.6 | 9.7 | 32.2 | 91 |
| 8 | 0.6 | 9.9 | 42.9 | 109 |
| 10 | 0.6 | 10.3 | 53.6 | 129 |
| 1 | 0.8 | 5 | 9.5 | 31 |
| 2 | 0.8 | 5.9 | 19 | 50 |
| 3 | 0.8 | 7.6 | 28.6 | 72 |
| 4 | 0.8 | 9.1 | 38.1 | 95 |
| 5 | 0.8 | 9.5 | 47.7 | 111 |
| 6 | 0.8 | 11.5 | 57.2 | 134 |
| 8 | 0.8 | 12 | 76.2 | 166 |
| 10 | 0.8 | 12.4 | 95.3 | 199 |
| 1 | 1 | 5.7 | 14.9 | 42 |
| 2 | 1 | 6.6 | 29.7 | 67 |
| 3 | 1 | 8.6 | 44.7 | 98 |
| 4 | 1 | 10.4 | 59.6 | 129 |
| 5 | 1 | 10.8 | 74.5 | 151 |
| 6 | 1 | 13.4 | 89.3 | 187 |
| 8 | 1 | 13.8 | 119.1 | 230 |
| 10 | 1 | 14.3 | 148.9 | 276 |
| 1 | 1.5 | 6.6 | 27.4 | 61 |
| 2 | 1.5 | 7.8 | 54.8 | 104 |
| 3 | 1.5 | 10.2 | 82.6 | 152 |
| 4 | 1.5 | 12.3 | 110.1 | 200 |
| 5 | 1.5 | 12.9 | 137.7 | 238 |
| 6 | 1.5 | 16.1 | 165.2 | 296 |
| 8 | 1.5 | 16.7 | 220.2 | 376 |
| 10 | 1.5 | 17.3 | 275.3 | 448 |
| 1 | 2.5 | 7.6 | 44.9 | 87 |
| 2 | 2.5 | 8.8 | 89.7 | 148 |
| 3 | 2.5 | 11.7 | 135.2 | 218 |
| 4 | 2.5 | 14.3 | 180.3 | 288 |
| 5 | 2.5 | 15.1 | 225.3 | 350 |
| 6 | 2.5 | 18.7 | 270.4 | 428 |
| 8 | 2.5 | 19.5 | 360.5 | 549 |
| 10 | 2.5 | 20.1 | 450.6 | 661 |
