Cat 6/6A Cable

Cat 6/6A Cable Description

Cat 6 cables use RJ45 connectors and are commonly used to connect computers to hubs, routers, or switches for network file sharing or internet access. This cable comes in different shielding types: U/UTP (unshielded/unshielded twisted pair), F/UTP (foil-shielded/unshielded twisted pair), and U/FTP (unshielded/foil-wrapped twisted pair).

Cat 6A is an enhanced Category 6 cable that supports 10 Gigabit Ethernet (10Gbps) with a bandwidth of 500 MHz, enabling reliable high-speed data transmission over even longer distances (up to 100 meters).

Cat 6/6A Cable Construction

	Cat 6 U/UTP PE Cable	Cat 6 U/UTP LSZH Cable	Cat 6 U/UTP SWA LSZH Cable	Cat 6 F/UTP PE External Cable	Cat 6 F/UTP LSZH Cable	Cat 6A U/FTP LSZH Cable
Number of pairs	4
Conductor	Class 1 solid copper
Insulation	HDPE (High Density Polyethylene)		Solid PE (Polyethylene)	HDPE (High Density Polyethylene)
Drain Wire	Tinned copper
Screen	-			Aluminium foil	Mylar + Aluminium foil/Mylar	Al/PET (Aluminium/Polyester tape)
Outer Sheath	PE (Polyethylene)	LSZH (Low Smoke Zero Halogen)		PE (Polyethylene)	LSZH (Low Smoke Zero Halogen)
Colour	Black	Violet	Black		Violet	Blue

Cat 6/6A Cable Characteristics

Temperature Rating
-20°C to +60°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 8 x overall diameter

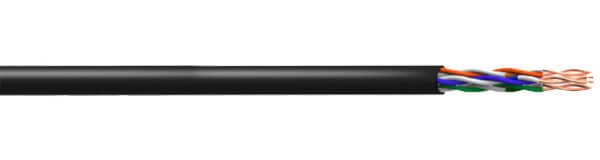

Cat 6 U/UTP PE Cable
Cat 6 U/UTP LSZH Cable
Cat 6 U/UTP SWA LSZH Cable
Cat 6 F/UTP PE External Cable
Cat 6 F/UTP LSZH Cable
Cat 6A U/FTP LSZH Cable

NO. OF PAIRS	AWG	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/305m box
4	23	1.02	6.7	16

NO. OF PAIRS	AWG	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/305m box
4	23	1.03	6.1	16

NO. OF PAIRS	AWG	NOMINAL DIAMETER OVER CONDUCTOR mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL DIAMETER OVER INNER SHEATH mm	NOMINAL DIAMETER OVER ARMOUR mm	NOMINAL OVERALL DIAMETER mm
4	23	0.57	1+2C twist	7.1	0.8	11.02

NO. OF PAIRS	AWG	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/305m box
4	23	1.02	6.7	16

NO. OF PAIRS (23 AWG)	NOMINAL DIAMETER OF CONDUCTOR mm		NOMINAL DIAMETER OVER INSULATION mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm
NO. OF PAIRS (23 AWG)	+0.005 UP	-0.005 DOWN	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm
4	0.565		1.12	0.55	7.4

NO. OF PAIRS	AWG	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
4	23	1.33	7.3	48
