BFCU Cable Description
BFCU cables feature HEPR or EPR insulation, tinned steel wire braid, and a mica tape fire-resistant layer, providing mechanical protection. They are ideal for safety-critical circuits with a high risk of fire and mechanical damage. They are commonly used in critical safety systems, emergency lighting, and control systems on offshore drilling platforms and ships.

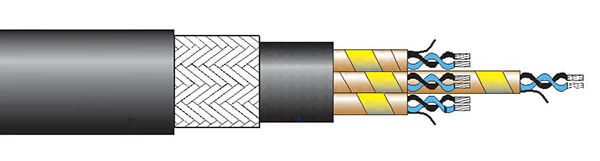

BFCU Cable Construction
- Conductor
- Class 2 tinned and stranded copper wire
- Insulation
- Halogen-free EPR or halogen-free HEPR
- Bending
- BFCU(I): Cores are twisted in double/triple arrangement and twisted peres/triads are twisted concentrically
- BFCU(C): The veins are twisted in pairs and the twisted peres are twisted concentrically
- Earthing Wire
- BFCU(I): Electrolytic, tinned and twisted copper grounding wire next to each per/triad
- BFCU(C): Electrolytic, tinned and twisted copper ground wire
- Separator
- Mica tape on conductor
- Bedding
- Halogen-free compound
- Screen
- Screen made of galvanized steel wires
- Outer Sheath
- SHF2
BFCU Cable Characteristics
- Rated Voltage
- BFCU: 0,6 / 1 kV
- BFCU(I), BFCU(C): 250 V
- Min. Bending Radius (Fixed)
- BFCU: 8 x(overall diameter)
- BFCU(I), BFCU(C): 10 x(overall diameter)
- Working Temperature
- -15°C / +90°
- BFCU
- BFCU(I)
- BFCU(C)
| Nominal Cross-Section (mm²) | Cable Outer Diameter (mm) | Approximate Cable Weight (kg/km) | Copper Weight (kg/km) |
|---|---|---|---|
| 1 x 1.5 | 8.7 | 120 | 15 |
| 1 x 2.5 | 9.2 | 150 | 24 |
| 1 x 10 | 11.4 | 250 | 96 |
| 1 x 16 | 12.4 | 350 | 154 |
| 1 x 25 | 14.8 | 520 | 240 |
| 1 x 35 | 16 | 630 | 336 |
| 1 x 50 | 17.3 | 820 | 480 |
| 1 x 70 | 19.6 | 1.08 | 672 |
| 1 x 95 | 21.4 | 1.35 | 912 |
| 1 x 120 | 23.6 | 1.65 | 1152 |
| 1 x 150 | 25.7 | 1.99 | 1440 |
| 1 x 185 | 28 | 2.44 | 1776 |
| 1 x 240 | 30.6 | 3.1 | 2304 |
| 1 x 300 | 33.8 | 3.8 | 2880 |
| 2 x 1.5 | 12.6 | 290 | 29 |
| 2 x 2.5 | 13.5 | 350 | 48 |
| 2 x 4 | 15.1 | 410 | 77 |
| 2 x 6 | 16.2 | 500 | 116 |
| 2 x 10 | 18.3 | 690 | 192 |
| 2 x 16 | 20.5 | 840 | 308 |
| 2 x 25 | 24.3 | 1.22 | 480 |
| 2 x 35 | 26.7 | 1.52 | 672 |
| 2 x 50 | 29.4 | 2.01 | 960 |
| 3 x 1.5 | 13.2 | 330 | 44 |
| 3 x 2.5 | 14.7 | 400 | 72 |
| 3 x 4 | 15.9 | 490 | 116 |
| 3 x 6 | 17.1 | 590 | 173 |
| 3 x 10 | 19.4 | 780 | 288 |
| 3 x 16 | 21.7 | 1.02 | 461 |
| 3 x 25 | 25.8 | 1.79 | 720 |
| 3 x 35 | 28.5 | 1.88 | 1008 |
| 3 x 50 | 31.3 | 2.51 | 1440 |
| 3 x 70 | 37 | 3.39 | 2016 |
| 3 x 95 | 41 | 4.4 | 2736 |
| 3 x 120 | 46.2 | 5.6 | 3456 |
| 3 x 150 | 50.6 | 6.75 | 4320 |
| 3 x 185 | 55.7 | 8.31 | 5328 |
| 3 x 240 | 61.8 | 10.69 | 6912 |
| 4 x 1.5 | 14.6 | 400 | 58 |
| 4 x 2.5 | 15.8 | 480 | 96 |
| 4 x 4 | 17.2 | 590 | 154 |
| 4 x 6 | 18.6 | 710 | 231 |
| 4 x 10 | 21.1 | 950 | 384 |
| 4 x 16 | 23.6 | 1.29 | 615 |
| 4 x 25 | 28.3 | 1.75 | 960 |
| 4 x 35 | 31.2 | 2.39 | 1344 |
| 4 x 50 | 31.2 | 3010 | 1920 |
| 4 x 70 | 40.7 | 4310 | 2688 |
| 4 x 95 | 45.6 | 5790 | 3648 |
| 4 x 120 | 51 | 7150 | 4608 |
| 4 x 150 | 56 | 9500 | 5760 |
| 4 x 185 | 62.1 | 10650 | 7104 |
| 5 x 1.5 | 15.7 | 450 | 72 |
| 5 x 2.5 | 17 | 550 | 120 |
| 5 x 4 | 18.6 | 650 | 192 |
| 5 x 6 | 20.1 | 810 | 288 |
| 5 x 10 | 22.9 | 1090 | 480 |
| 5 x 16 | 25.8 | 1490 | 768 |
| 5 x 25 | 31 | 2190 | 1200 |
| 5 x 35 | 34.7 | 2780 | 1680 |
| 5 x 50 | 38.7 | 4010 | 2400 |
| 5 x 70 | 44.7 | 5290 | 3360 |
| 5 x 95 | 50,1 | 7010 | 4560 |
| 7 x 1.5 | 16.9 | 550 | 101 |
| 7 x 2.5 | 18.3 | 650 | 168 |
| 10 x 1.5 | 20 | 830 | 144 |
| 10 x 2.5 | 21.8 | 1010 | 240 |
| 12 x 1.5 | 21.3 | 890 | 173 |
| 12 x 2.5 | 23.4 | 1090 | 288 |
| 14 x 1.5 | 22.3 | 990 | 202 |
| 14 x 2.5 | 24.5 | 1050 | 336 |
| 19 x 1.5 | 24.6 | 1200 | 274 |
| 19 x 2.5 | 27 | 1410 | 456 |
| 24 x 1.5 | 27.3 | 1450 | 346 |
| 24 x 2.5 | 30.1 | 2010 | 576 |
| 27 x 1.5 | 29 | 1650 | 389 |
| 27 x 2.5 | 32 | 2150 | 648 |
| 37 x 1.5 | 32.3 | 2120 | 533 |
| 37 x 2.5 | 36.6 | 2830 | 888 |
| Nominal Cross-Section (mm²) | Cable Outer Diameter (mm) | Approximate Cable Weight (kg/km) | Copper Weight (kg/km) |
|---|---|---|---|
| 1x2x0.75 | 11.6 | 170 | 20 |
| 2x2x0.75 | 17.1 | 300 | 39 |
| 8x2x0.75 | 27.7 | 700 | 154 |
| 9x2x0.75 | 27.7 | 750 | 173 |
| 10x2x0.75 | 27.7 | 870 | 192 |
| 12x2x0.75 | 29.8 | 900 | 231 |
| 14x2x0.75 | 31.2 | 1200 | 269 |
| 16x2x0.75 | 33.4 | 1340 | 308 |
| 19x2x0.75 | 35.1 | 1650 | 365 |
| 24x2x0.75 | 39.7 | 1610 | 461 |
| 1x3x0.75 | 12.1 | 200 | 27 |
| 2x3x0.75 | 18.7 | 330 | 53 |
| 4x3x0.75 | 21.5 | 500 | 106 |
| 7x3x0.75 | 25.4 | 740 | 185 |
| 8x3x0.75 | 30.7 | 850 | 212 |
| 9x3x0.75 | 30.7 | 1120 | 238 |
| 10x3x0.75 | 30.7 | 1300 | 264 |
| 12x3x0.75 | 33.6 | 1180 | 317 |
| 14x3x0.75 | 35.2 | 1840 | 370 |
| 16x3x0.75 | 37.6 | 1540 | 423 |
| 19x3x0.75 | 39.6 | 2400 | 502 |
| 24x3x0.75 | 44.7 | 2090 | 634 |
| 1x2x1.5 | 13 | 210 | 34 |
| 2x2x1.5 | 19.6 | 400 | 68 |
| 4x2x1.5 | 22.6 | 550 | 135 |
| 7x2x1.5 | 26.7 | 810 | 236 |
| 8x2x1.5 | 32.8 | 980 | 269 |
| 9x2x1.5 | 32.8 | 1010 | 303 |
| 10x2x1.5 | 32.8 | 1210 | 336 |
| 12x2x1.5 | 35.4 | 1300 | 404 |
| 14x2x1.5 | 37.6 | 1410 | 471 |
| 16x2x1.5 | 39.7 | 1720 | 538 |
| 19x2x1.5 | 41.8 | 2100 | 639 |
| 24x2x1.5 | 47.2 | 2450 | 807 |
| 1x2x1.5 | 14 | 220 | 48 |
| 2x3x1.5 | 21.6 | 460 | 96 |
| 4x3x1.5 | 25 | 710 | 192 |
| 7x3x1.5 | 29.7 | 1010 | 336 |
| 8x3x1.5 | 37 | 1190 | 384 |
| 9x3x1.5 | 37 | 1300 | 432 |
| 10x3x1.5 | 37 | 1600 | 480 |
| 12x3x1.5 | 39.9 | 1800 | 576 |
| 14x3x1.5 | 44.8 | 2490 | 672 |
| 16x3x1.5 | 47.1 | 2610 | 768 |
| 19x3x1.5 | 52.8 | 2850 | 912 |
| 24x3x1.5 | 14.4 | 3230 | 1152 |
| 1x3x2.5 | 21.4 | 510 | 53 |
| 2x2x2.5 | 24.7 | 1020 | 106 |
| 4x2x2.5 | 29.3 | 1600 | 212 |
| 7x2x2.5 | 36.6 | 1810 | 370 |
| 8x2x2.5 | 36.6 | 1950 | 423 |
| 9x2x2.5 | 36.6 | 2200 | 476 |
| 10x2x2.5 | 15.1 | 2350 | 528 |
| 1x2x2.5 | 23.6 | 710 | 77 |
| 2x3x2.5 | 27.4 | 1530 | 154 |
| 4x3x2.5 | 32.6 | 2410 | 308 |
| 7x3x2.5 | 40.7 | 2680 | 538 |
| 8x3x2.5 | 40.7 | 2950 | 615 |
| 9x3x2.5 | 40.7 | 3310 | 692 |
| 10x3x2.5 | 46.7 | 3500 | 768 |
| Nominal Cross-Section (mm²) | Cable Outer Diameter (mm) | Approximate Cable Weight (kg/km) | Copper Weight (kg/km) |
|---|---|---|---|
| 1x2x0.75 | 11.6 | 200 | 20 |
| 2x2x0.75 | 16.9 | 360 | 34 |
| 8x2x0.75 | 27 | 940 | 120 |
| 9x2x0.75 | 27 | 1020 | 135 |
| 10x2x0.75 | 27 | 1170 | 149 |
| 12x2x0.75 | 29.1 | 1260 | 178 |
| 14x2x0.75 | 30.5 | 1620 | 207 |
| 16x2x0.75 | 32.1 | 1820 | 236 |
| 19x2x0.75 | 34.2 | 2220 | 279 |
| 24x2x0.75 | 38.6 | 2330 | 351 |
| 1x3x0.75 | 12.1 | 240 | 27 |
| 2x3x0.75 | 18.5 | 410 | 48 |
| 4x3x0.75 | 21.2 | 660 | 92 |
| 7x3x0.75 | 24.9 | 1020 | 156 |
| 8x3x0.75 | 30 | 1170 | 178 |
| 9x3x0.75 | 30 | 1480 | 200 |
| 10x3x0.75 | 30 | 1700 | 221 |
| 12x3x0.75 | 32.8 | 1660 | 264 |
| 14x3x0.75 | 34.4 | 2400 | 308 |
| 16x3x0.75 | 36.7 | 2180 | 351 |
| 19x3x0.75 | 38.6 | 3160 | 416 |
| 24x3x0.75 | 43.1 | 3050 | 524 |
| 1x2x1.5 | 13 | 260 | 34 |
| 2x2x1.5 | 19.4 | 500 | 63 |
| 4x2x1.5 | 22.3 | 750 | 120 |
| 7x2x1.5 | 26.3 | 1160 | 207 |
| 8x2x1.5 | 31.8 | 1380 | 236 |
| 9x2x1.5 | 31.8 | 1460 | 264 |
| 10x2x1.5 | 31.8 | 1710 | 293 |
| 12x2x1.5 | 34.7 | 1900 | 351 |
| 14x2x1.5 | 36.8 | 2110 | 408 |
| 16x2x1.5 | 38.9 | 2520 | 466 |
| 19x2x1.5 | 40.9 | 3050 | 552 |
| 24x2x1.5 | 46.1 | 3650 | 696 |
| 1x3x1.5 | 14 | 280 | 48 |
| 2x3x1.5 | 21.3 | 580 | 92 |
| 4x3x1.5 | 24.6 | 950 | 178 |
| 7x3x1.5 | 29.2 | 1430 | 308 |
| 8x3x1.5 | 36.3 | 1670 | 351 |
| 9x3x1.5 | 36.3 | 1840 | 394 |
| 10x3x1.5 | 36.3 | 2200 | 437 |
| 12x3x1.5 | 39.1 | 2520 | 524 |
| 14x3x1.5 | 41.1 | 3330 | 610 |
| 16x3x1.5 | 43.4 | 3570 | 696 |
| 19x3x1.5 | 46.2 | 3990 | 826 |
| 24x3x1.5 | 51.6 | 4670 | 104 |
| 1x2x2.5 | 14.4 | 570 | 2 |
| 2x2x2.5 | 21.1 | 1140 | 53 |
| 4x2x2.5 | 24.4 | 1840 | 101 |
| 7x2x2.5 | 28.9 | 2230 | 197 |
| 8x2x2.5 | 35.9 | 2430 | 341 |
| 9x2x2.5 | 35.9 | 2740 | 389 |
| 10x2x2.5 | 35.9 | 2950 | 437 |
| 1x3x2.5 | 15.1 | 780 | 485 |
| 2x3x2.5 | 23.3 | 1670 | 77 |
| 4x3x2.5 | 27 | 2690 | 149 |
| 7x3x2.5 | 32.1 | 3170 | 293 |
| 8x3x2.5 | 40.1 | 3510 | 509 |
| 9x3x2.5 | 40.1 | 3940 | 581 |
| 10x3x2.5 | 40.1 | 4200 | 653 |
