EY2Y Cable

EY2Y Cable Description

EY2Y cables feature copper conductors, PVC insulation, and a robust, weather-resistant polyethylene (PE) outer sheath. They offer excellent resistance to moisture, UV radiation, chemicals, and abrasion. These cables are designed for environments free from mechanical damage and tensile strain, and are suitable for fixed installations—whether indoors, outdoors, underground, in cable ducts, or underwater.

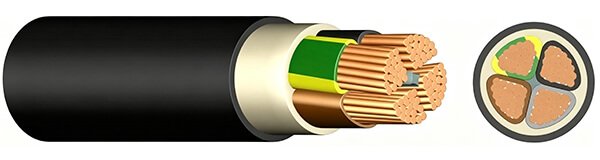

EY2Y Cable Construction

Conductor
Solid (RE) or stranded (RM/SM) bare copper
Insulation
Polyvinylchloride (PVC)
Outer Sheath
Polyethylene (PE)

EY2Y Cable Characteristics

Voltage Rating
0.6/1 kV
Temperature range
in motion: -5°C to +70°C
fixed: -20°C to +70°C

EY2Y Cable Specifications

Number of cores and nominal cross section (mm²)	Copper figure (kg/km)	Overall diameter appr. (mm)	Weight appr. (kg/km)	Current carrying capacity ground (A)	Current carrying capacity air (A)
4 x 6 RE	240	15	570	56	43
4 x 10 RE	400	20	775	75	60
4 x 10 RM	400	20	775	75	60
4 x 16 RE	640	21	1.05	98	80
4 x 16 RM	640	22	1.1	98	80
4 x 25 RM	1	25	1.632	128	106
4 x 35 SM	1.4	27	1.959	157	131
4 x 50 SM	2	32	2.595	185	159
5 x 6 RE	300	17	672	*	*
5 x 10 RE	500	21	921	*	*
