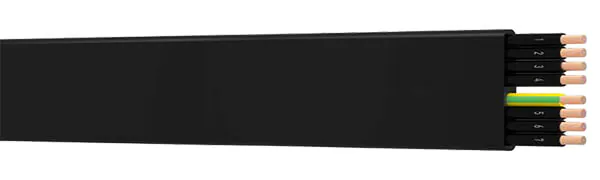

H07RNH6-F Cable Description
The H07RNH6-F cable features a flat design, offering high flexibility and allowing for repeated winding and unwinding. It is resistant to oil, grease, chemicals, and humid environments. It is primarily used as a drag cable for mobile machinery such as elevators, cranes, lifts, and cable reels.
H07RNH6-F Cable Construction
- Conductor
- Class 5 stranded plain copper wires
- Seperator
- A suitable tape may be applied over the conductor
- Insulation
- EI4 type cross-linked elastomeric compound, EPR
- Outer Sheath
- EM2 type cross-linked elastomeric compound
H07RNH6-F Cable Characteristics
- Rated Voltage
- 450/750 V
- Operating Tempetature
- In Flexing Use -25°C to +60°C
- In Fixed Use -40°C to +90°C
- Min. Installation Temp.
- -25°C
H07RNH6-F Cable Specifications
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (free movement) (mm) | Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×1,5 | 5,60 x 12,70 | 137 | 22 | 13,30 |
| 3×2,5 | 6,80 x 15,90 | 213 | 27 | 7,98 |
| 3×10 | 10,10 x 26,90 | 605 | 40 | 1,91 |
| 3×16 | 11,80 x 30,60 | 859 | 47 | 1,21 |
| 3×25 | 14,00 x 36,70 | 1224 | 70 | 0,78 |
| 3×35 | 15,70 x 41,20 | 1608 | 79 | 0,554 |
| 3×50 | 17,90 x 48,00 | 2191 | 90 | 0,386 |
| 3×70 | 21,20 x 55,50 | 3098 | 127 | 0,272 |
| 3×95 | 23,10 x 60,00 | 3786 | 139 | 0,206 |
| 3×120 | 25,80 x 67,00 | 4877 | 155 | 0,161 |
| 3×150 | 28,40 x 73,20 | 5990 | 170 | 0,129 |
| 3×185 | 31,50 x 80,90 | 7725 | 189 | 0,106 |
| 3×240 | 35,60 x 91,60 | 9580 | 214 | 0,0801 |
| 4×1,5 | 5,90 x 17,00 | 191 | 24 | 13,30 |
| 4×2,5 | 6,50 x 20,00 | 263 | 26 | 7,98 |
| 4×4 | 8,00 x 23,00 | 385 | 32 | 4,95 |
| 4×6 | 8,10 x 25,00 | 463 | 32 | 3,30 |
| 4×10 | 10,00 x 33,20 | 760 | 40 | 1,91 |
| 4×16 | 12,10 x 38,60 | 1123 | 61 | 1,21 |
| 4×25 | 14,50 x 47,60 | 1639 | 73 | 0,78 |
| 4×35 | 16,30 x 53,80 | 2167 | 82 | 0,554 |
| 4×50 | 18,20 x 62,00 | 2894 | 91 | 0,386 |
| 4×70 | 20,50 x 70,00 | 3919 | 123 | 0,272 |
| 4×95 | 23,10 x 78,30 | 4986 | 139 | 0,206 |
| 4×120 | 24,50 x 86,00 | 6049 | 147 | 0,161 |
| 4×150 | 27,00 x 95,90 | 7442 | 162 | 0,129 |
| 4×185 | 27,60 x 116,10 | 9175 | 166 | 0,106 |
| 4×240 | 35,60 x 119,60 | 12630 | 214 | 0,0801 |
| 5×1,5 | 5,60 x 20,00 | 217 | 22 | 13,30 |
| 5×2,5 | 6,60 x 23,00 | 311 | 26 | 7,98 |
| 5×4 | 7,90 x 27,50 | 461 | 32 | 4,95 |
| 5×6 | 8,40 x 30,00 | 576 | 42 | 3,30 |
| 5×10 | 9,80 x 39,30 | 902 | 49 | 1,91 |
| 5×16 | 11,40 x 43,40 | 1263 | 57 | 1,21 |
| 5×25 | 14,40 x 56,80 | 1984 | 72 | 0,78 |
| 5×35 | 15,50 x 62,30 | 2508 | 78 | 0,554 |
| 7×1,5 | 5,60 x 27,60 | 301 | 22 | 13,30 |
| 7×2,5 | 6,80 x 33,70 | 463 | 27 | 7,98 |
| 7×4 | 8,00 x 40,40 | 675 | 32 | 4,95 |
| 7×6 | 8,50 x 43,10 | 828 | 34 | 3,30 |
| 7×10 | 10,00 x 53,70 | 1259 | 40 | 1,91 |
| 7×16 | 13,00 x 65,80 | 2025 | 65 | 1,21 |
| 8×1,5 | 6,20 x 31,00 | 369 | 25 | 13,30 |
| 8×2,5 | 6,40 x 36,00 | 478 | 26 | 7,98 |
| 10×1,5 | 6,30 x 38,40 | 463 | 25 | 13,30 |
| 10×2,5 | 7,20 x 42,60 | 628 | 29 | 7,98 |
| 12×1,5 | 5,80 x 46,90 | 527 | 23 | 13,30 |
| 12×2,5 | 7,40 x 58,00 | 850 | 30 | 7,98 |
| 14×1,5 | 6,80 x 54,50 | 698 | 27 | 13,30 |
| 14×2,5 | 7,70 x 66,90 | 1015 | 31 | 7,98 |
| 16×1,5 | 6,80 x 64,00 | 817 | 27 | 13,30 |
| 16×2,5 | 7,70 x 71,80 | 1068 | 31 | 7,98 |
| 24×1,5 | 6,60 x 92,50 | 1158 | 26 | 13,30 |
| 24×2,5 | 6,00 x 96,30 | 1257 | 24 | 7,98 |
