FM2XCH Cable Description
FM2XCH cables feature an integrated shielding layer to minimize electromagnetic interference and are commonly used in marine radio, radar, and information systems. A twisted-pair version (FM2XCCH) is also available to ensure proper transmission of high-frequency signals.
Due to its halogen-free, low-smoke, and flame-retardant properties, it does not produce corrosive gases even in the event of a fire. An FE180 version is also available, maintaining insulation integrity for up to 180 minutes under direct flame impact.

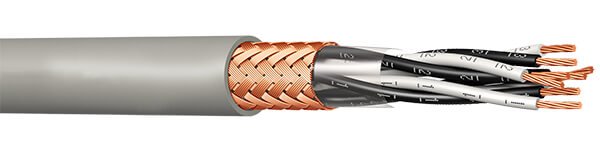

FM2XCH Cable Construction
- Conductor
- Class 2 stranded annealed copper wire (Class 5 and / or tinned on request)
- Insulation
- XLPE (Cross linked polyethylene compound)
- Inner Covering
- Separating foil
- Screen
- Tinned or bare copper braided screen (min 90% coverage)
- Outer sheath
- Halogen-free, flame retardant, UV resistant, polyolefin based compound (SHF 1)
FM2XCH Cable Characteristics
- Rated Voltage
- 150 / 250 V
- Min. Bending Radius
- 6xD
- Working Temperature
- -40°C / + 90°C
FM2XCH Cable Specifications
| Cross Section (mm²) | Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius Fixed Installed (mm) | Max Resistance of Conductors at 20℃ (ohm / km) | Current Carrying Capacity at 45℃ (A) |
|---|---|---|---|---|---|
| 1x2x0,5 | 6,3 | 58 | 38 | 40,4 | 11 |
| 1x4x0,5 | 7,0 | 71 | 42 | 40,4 | 9 |
| 2x2x0,5 | 8,7 | 98 | 53 | 40,4 | 9 |
| 4x2x0,5 | 9,2 | 134 | 56 | 40,4 | 6 |
| 5x2x0,5 | 10,7 | 155 | 65 | 40,4 | 6 |
| 7x2x0,5 | 11,7 | 194 | 71 | 40,4 | 5 |
| 8x2x0,5 | 12,6 | 217 | 76 | 40,4 | 5 |
| 10x2x0,5 | 15,1 | 300 | 91 | 40,4 | 5 |
| 12x2x0,5 | 15,5 | 330 | 93 | 40,4 | 5 |
| 14x2x0,5 | 16,2 | 372 | 98 | 40,4 | 4 |
| 16x2x0,5 | 17,3 | 420 | 104 | 40,4 | 4 |
| 18x2x0,5 | 18,1 | 456 | 109 | 40,4 | 4 |
| 19x2x0,5 | 18,1 | 468 | 109 | 40,4 | 4 |
| 20x2x0,5 | 19,0 | 490 | 114 | 40,4 | 4 |
| 24x2x0,5 | 19,4 | 560 | 117 | 40,4 | 4 |
| 37x2x0,5 | 24,1 | 810 | 145 | 40,4 | 3 |
| 1x2x0,75 | 7,1 | 75 | 43 | 26,0 | 13 |
| 1x4x0,75 | 8,0 | 102 | 48 | 26,0 | 11 |
| 2x2x0,75 | 10,0 | 124 | 60 | 26,0 | 11 |
| 4x2x0,75 | 11,7 | 183 | 71 | 26,0 | 8 |
| 5x2x0,75 | 12,7 | 213 | 77 | 26,0 | 7 |
| 6x2x0,75 | 14,3 | 280 | 86 | 26,0 | 7 |
| 7x2x0,75 | 14,3 | 300 | 86 | 26,0 | 7 |
| 8x2x0,75 | 15,3 | 332 | 92 | 26,0 | 6 |
| 10x2x0,75 | 17,9 | 414 | 108 | 26,0 | 6 |
| 12x2x0,75 | 18,5 | 460 | 111 | 26,0 | 6 |
| 14x2x0,75 | 19,5 | 520 | 117 | 26,0 | 5 |
| 16x2x0,75 | 20,6 | 574 | 124 | 26,0 | 5 |
| 18x2x0,75 | 21,6 | 628 | 130 | 26,0 | 5 |
| 19x2x0,75 | 21,6 | 648 | 130 | 26,0 | 5 |
| 20x2x0,75 | 22,8 | 695 | 137 | 26,0 | 5 |
| 24x2x0,75 | 25,4 | 820 | 153 | 26,0 | 5 |
| 37x2x0,75 | 29,1 | 1138 | 175 | 26,0 | 4 |
| 1x2x1 | 7,4 | 80 | 45 | 19,2 | 16 |
| 1x4x1 | 8,6 | 118 | 52 | 19,2 | 13 |
| 2x2x1 | 10,5 | 138 | 63 | 19,2 | 13 |
| 4x2x1 | 12,3 | 208 | 74 | 19,2 | 9 |
| 5x2x1 | 14,0 | 280 | 84 | 19,2 | 9 |
| 6x2x1 | 15,0 | 318 | 90 | 19,2 | 8 |
| 7x2x1 | 15,0 | 342 | 90 | 19,2 | 8 |
| 8x2x1 | 16,2 | 380 | 98 | 19,2 | 8 |
| 10x2x1 | 18,9 | 474 | 114 | 19,2 | 7 |
| 12x2x1 | 19,7 | 540 | 119 | 19,2 | 7 |
| 14x2x1 | 20,6 | 600 | 124 | 19,2 | 6 |
| 16x2x1 | 21,7 | 665 | 131 | 19,2 | 6 |
| 18x2x1 | 23,0 | 740 | 138 | 19,2 | 6 |
| 19x2x1 | 23,0 | 765 | 138 | 19,2 | 6 |
| 20x2x1 | 24,1 | 805 | 145 | 19,2 | 6 |
| 24x2x1 | 24,7 | 918 | 149 | 19,2 | 6 |
| 37x2x1 | 31,0 | 1348 | 186 | 19,2 | 5 |
| 1x2x1,5 | 8,7 | 108 | 53 | 12,8 | 20 |
| 1x4x1,5 | 9,8 | 155 | 59 | 12,8 | 17 |
| 2x2x1,5 | 12,4 | 187 | 75 | 12,8 | 17 |
| 4x2x1,5 | 14,9 | 320 | 90 | 12,8 | 12 |
| 5x2x1,5 | 16,2 | 372 | 98 | 12,8 | 11 |
| 6x2x1,5 | 17,7 | 435 | 107 | 12,8 | 10 |
| 7x2x1,5 | 17,7 | 470 | 107 | 12,8 | 10 |
| 8x2x1,5 | 19,3 | 538 | 116 | 12,8 | 9 |
| 10x2x1,5 | 22,6 | 670 | 136 | 12,8 | 9 |
| 12x2x1,5 | 23,3 | 750 | 140 | 12,8 | 9 |
| 14x2x1,5 | 24,4 | 840 | 147 | 12,8 | 8 |
| 16x2x1,5 | 26,0 | 950 | 156 | 12,8 | 8 |
| 18x2x1,5 | 27,5 | 1050 | 165 | 12,8 | 7 |
| 19x2x1,5 | 27,5 | 1090 | 165 | 12,8 | 7 |
| 20x2x1,5 | 28,9 | 1150 | 174 | 12,8 | 7 |
| 24x2x1,5 | 29,3 | 1300 | 176 | 12,8 | 7 |
| 37x2x1,5 | 37,5 | 2040 | 225 | 12,8 | 6 |
