MVCECH Cable

MVCECH Cable Description

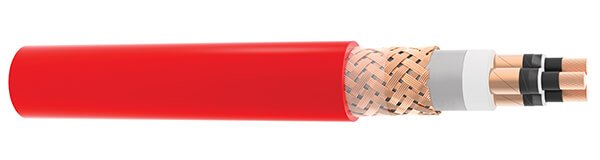

MVCECH cables feature stranded copper conductors, HEPR insulation, and an integral tinned copper braided shield to minimize electromagnetic interference. Suitable for fixed installations in marine and offshore applications, including harsh environments requiring high electromagnetic compatibility (EMC).

MVCECH Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and / or tinned on request)
Conductor Screen
Semiconductive layer
Insulation
HF HEPR Compound
Insulation Screen
Semiconductive layer
Core Screen
Copper Tape
Bedding
Halogen-free bedding compound
Screen
Electrolytic copper braided screen (90% coverage)
Outer Sheath
Flame-retardant, halogen-free, polyolefin compound (typically SHF1 or SHF2)

MVCECH Cable Characteristics

Rated Voltage
3.6 / 6 (7.2) kV
6 / 10 (12) kV
8.7 / 15 (17.5) kV
12 / 20 (24) kV
Working Temperature
-40°C / + 90°C
Min. Bending Radius
For Single Core Cables 12 x D
For 3 Core Cables 9 x D

MVCECH 3.6 / 6 (7.2) kV
MVCECH 6 / 10 (12) kV
MVCECH 8.7 / 15 (17.5) kV
MVCECH 12 / 20 (24) kV

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
1 x 10	19,4-22,3	610	268	1,83	72
1 x 16	20,3-23,5	710	282	1,15	96
1 x 25	21,5-24,9	855	298	0,727	127
1 x 35	23,0-26,7	1000	320	0,524	157
1 x 50	23,9-27,7	1160	332	0,387	196
1 x 70	25,4-29,4	1400	352	0,268	242
1 x 95	27,3-31,6	1720	379	0,193	293
1 x 120	28,8-33,4	2020	400	0,153	339
1 x 150	30,7-35,6	2330	415	0,124	389
1 x 185	33,0-38,2	2780	458	0,0991	444
1 x 240	35,9-41,5	3530	498	0,0754	522
1 x 300	38,6-44,7	4250	536	0,0601	601
3 x 10	35,1-40,6	1950	365	1,83	50
3 x16	36,9-42,7	2275	384	1,15	67
3 x 25	39,8-46,0	2770	414	0,727	89
3 x 35	43,4-50,2	3330	451	0,524	110
3 x 50	45,3-52,4	3875	472	0,387	137
3 x 70	48,7-56,4	4710	508	0,268	159
3 x 95	52,8-61,1	5850	550	0,193	205
3 x 120	56,3-65,2	6900	586	0,153	237
3 x 150	60,8-70,3	8050	632	0,124	272
3 x 185	64,6-74,8	9500	673	0,0991	311
3 x 240	70,3-81,3	11915	732	0,0754	365
3 x 300	76,2-88,3	14500	794	0,0601	421

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
1 x 16	22,0-25,5	810	306	1,15	96
1 x 25	23,4-27,1	970	325	0,727	127
1 x 35	24,7-28,6	1110	343	0,524	157
1 x 50	25,8-29,9	1280	358	0,387	196
1 x 70	27,3-31,6	1530	379	0,268	242
1 x 95	29,2-33,8	1860	406	0,193	293
1 x 120	30,5-35,4	2020	424	0,153	339
1 x 150	34,2-39,6	2540	475	0,124	389
1 x 185	35,3-40,9	3040	490	0,0991	444
1 x 240	38,0-44,0	3735	528	0,0754	522
1 x 300	40,5-46,9	4450	562	0,0601	601
3 x 16	41,0-47,5	2690	427	1,15	67
3 x 25	44,2-51,2	3270	460	0,727	89
3 x 35	47,3-54,7	3800	492	0,524	110
3 x 50	49,4-57,1	4380	514	0,387	137
3 x 70	52,8-61,1	5250	550	0,268	169
3 x 95	57,0-66,0	6450	594	0,193	205
3 x 120	63,6-73,6	7750	662	0,153	237
3 x 150	67,5-78,1	9050	703	0,124	272
3 x 185	68,4-79,2	10150	713	0,0991	311
3 x 240	74,1-85,8	12560	772	0,0754	365
3 x 300	80,1-92,8	15260	835	0,0601	421

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
1 x 25	25,5-29,5	1100	354	0,727	127
1 x 35	27,0-31,3	1260	376	0,524	157
1 x 50	29,1-33,7	1490	404	0,387	196
1 x 70	29,6-34,3	1700	412	0,268	242
1 x 95	31,3-36,2	2000	434	0,193	293
1 x 120	33,9-39,2	2420	470	0,153	339
1 x 150	35,8-41,4	2840	496	0,124	389
1 x 185	37,6-43,5	3250	522	0,0991	444
1 x 240	40,3-46,7	3970	560	0,0754	522
1 x 300	42,6-49,3	4650	592	0,0601	601
3 x 25	49,2-56,9	3900	512	0,727	89
3 x 35	52,2-60,4	4450	544	0,524	110
3 x 50	54,5-63,0	5070	567	0,387	137
3 x 70	58,1-67,3	6030	606	0,268	169
3 x 95	62,0-71,8	7220	646	0,193	205
3 x 120	65,0-75,3	8300	678	0,153	237
3 x 150	69,9-80,9	9600	728	0,124	272
3 x 185	73,8-85,4	11150	768	0,0991	311
3 x 240	79,1-91,6	13550	824	0,0754	365
3 x 300	85,0-98,4	16300	886	0,0601	421

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
1 x 35	29,1-33,7	1410	404	0,524	157
1 x 50	31,0-35,9	1600	430	0,387	196
1 x 70	31,7-36,7	1860	440	0,268	242
1 x 95	33,8-39,1	2210	470	0,193	293
1 x 120	36,3-42,1	2700	505	0,153	339
1 x 150	37,9-43,8	3030	526	0,124	389
1 x 185	39,5-45,7	3450	548	0,0991	444
1 x 240	42,-48,9	4170	586	0,0754	522
1 x 300	45,1-52,2	4950	626	0,0601	601
3 x 35	56,9-65,8	5120	592	0,524	110
3 x 50	58,9-68,1	5730	613	0,387	137
3 x 70	62,4-72,2	6710	650	0,268	169
3 x 95	66,5-76,9	7970	692	0,193	205
3 x 120	69,9-80,9	9130	728	0,153	237
3 x 150	74,1-85,8	10400	772	0,124	272
3 x 185	78,2-90,6	12020	815	0,0991	311
3 x 240	83,4-96,5	14450	868	0,0754	365
3 x 300	89,3-103,3	17300	930	0,0601	421
